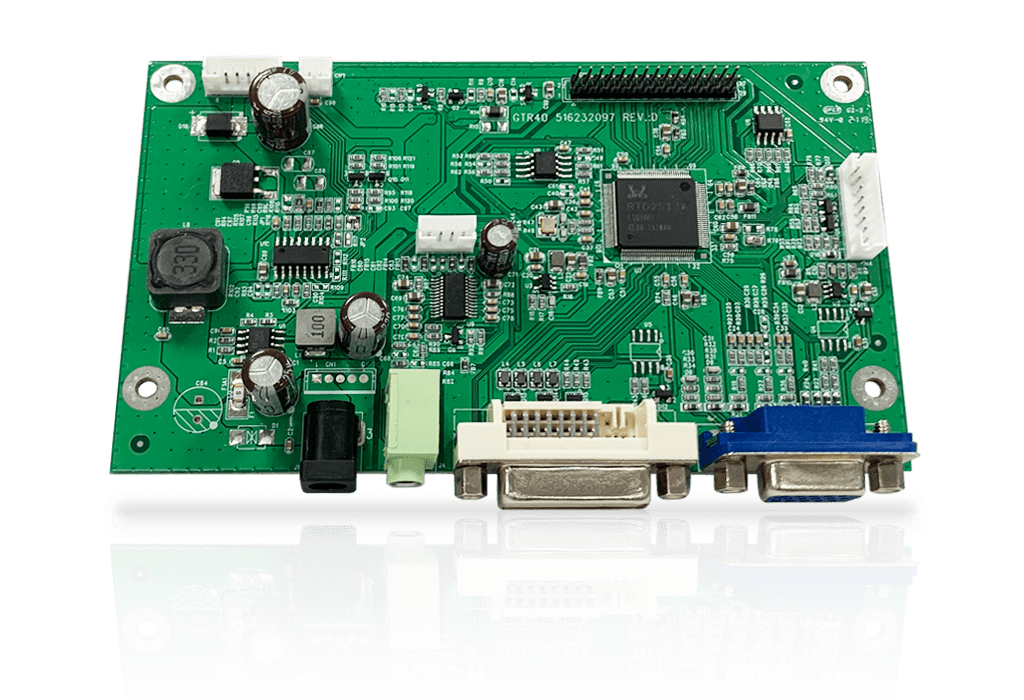

AD-0040D AD Board LVDS With LED Driver
Resolution:
up to 1920 X 1080 @ 60 Hz.
Output:
Dual port 6/8 bits LVDS Interface to panel
Speaker 8 Ohm - 1.6W + 1.6W
Input:
VGA connector x 1
DVI connector x 1
Audio phone jack-in x 1
LED Driver:
output Voltage Max - 68V
output Current Max - 240mA
up to 1920 X 1080 @ 60 Hz.
Output:
Dual port 6/8 bits LVDS Interface to panel
Speaker 8 Ohm - 1.6W + 1.6W
Input:
VGA connector x 1
DVI connector x 1
Audio phone jack-in x 1
LED Driver:
output Voltage Max - 68V
output Current Max - 240mA
DC-IN：
+12V and up 4A Adaptor
Panel power：
5V/ 12V
Dimension：
133mm x 80mm x 14.5mm
Temperature Range：
Operating(℃)：-20~70
Storage(℃)：-40~70
+12V and up 4A Adaptor
Panel power：
5V/ 12V
Dimension：
133mm x 80mm x 14.5mm
Temperature Range：
Operating(℃)：-20~70
Storage(℃)：-40~70
