AD-1037 LCD Controller Board (AD Board)

AD-1037
AD-1037
AD-1037
AD-1037

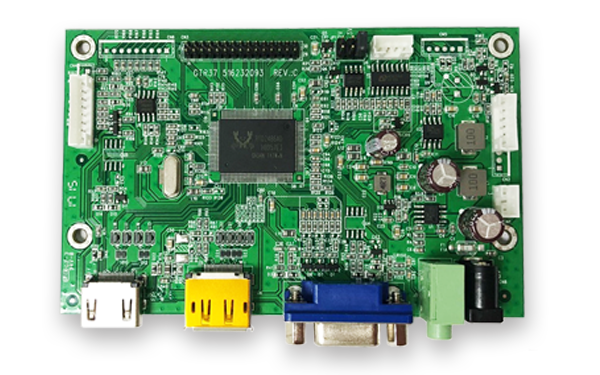

AD-1037 AD Board (For Bar Display)

Resolution:
up to 1920 X 540 @ 60 Hz. (Base on panel spec)
Output:
Dual port 6/8 bits LVDS Interface to panel
Speaker 8 Ohm - 1.6W + 1.6W
Input:
VGA connector x 1
HDMI connector x 1
Display Port connector x 1
Audio phone jack-in x 1
DC-IN:
+12V and up 1A Adaptor
Panel power:
3.3V/ 5V/ 12V
Dimension:
120mm x 75mm
Temperature Range:
Operating(℃):-20~70
Storage(℃):-40~70
Specifications
VGA
HDMI
Audio Phone Jack
Display Port 1.2
Browsing History
FAQ
How to choose AD Board?
First check your panel’s resolution and interface (MIPI, LVDS, eDP, V-By-One)
and choose input you need (VGA, DVI, DP, HDMI), then you can select the AD Board you suit preliminary.
Does that include signal/backlight cable and OSD keyboard?
We have standard cable for mainstream panel in market, but if your panel is rare item, then we can’t provide.
Should I need to add a backlight driver board after panel with the AD Board?
NB panel and most industrial series already built-in backlight driver IC,
but monitor and few industrial series without backlight driver IC inside, need to add backlight driver board.
Our AD-0040 is included AD board and backlight driver function.
Should I have to select panel item before buying the AD Board?
Yes, because it’s depend on panel’s resolution, need different AD Board firmware.
How long is the product warranty?
Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
