F156RET-T51 Spec. Download	F156RET-T41 Spec. Download	F156RET-T52 Spec. Download	F156RET-TA1 Spec. Download

15.6" Touch Display Specification

Part	Description	F156RET-T51	F156RET-T41	F156RET-T52	F156RET-TA1
LCD Display	Inch	15.6"	15.6"	15.6"	15.6"
	Resolution	1366 x 768	1920 x 1080	1920 x 1080	1920 x 1080
	Interface	LVDS	eDP	LVDS	LVDS
	Brightness (cd/㎡)	500	450	500	1,000
	Viewing Angle	85/85/80/80	89/89/89/89	89/89/89/89	89/89/89/89
	B/L Life Time (Hr)	50K	50K	50K	50K
	Backlight Driver	Built-in	Built-in	Built-in	Built-in
	Operating Temp. (℃)	0 ~ 60	0 ~ 60	-20 ~ 70	-30 ~ 85
Touch RTP	Structure (Glass Thickness)	F/G (2.2 mm)	F/G (2.2 mm)	F/G (2.2 mm)	F/G (2.2 mm)
	Touch IC	EETI EXC7700	EETI EXC7700	EETI EXC7700	EETI EXC7700
	FFC Type	COB	COB	COB	COB
	Touch Controller	ETP-MB-MER4050	ETP-MB-MER4050	ETP-MB-MER4050	ETP-MB-MER4050
	Interface	USB / RS232	USB / RS232	USB / RS232	USB / RS232
	Surface Treatment	Clear	Clear	Clear	Clear
	Transparency	≧ 80%	≧ 80%	≧ 80%	≧ 80%
	Surface Hardness	≧ 3H	≧ 3H	≧ 3H	≧ 3H
	Operating Temp. (℃)	-20 ~ 70	-20 ~ 70	-20 ~ 70	-20 ~ 70
	Allow Touch Points	1 Point	1 Point	1 Point	1 Point
	Input Method	Finger, Gloved, Stylus	Finger, Gloved, Stylus	Finger, Gloved, Stylus	Finger, Gloved, Stylus
	OS	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11
Touch Display	Bonding Type	Air Bonding	Air Bonding	Air Bonding	Air Bonding

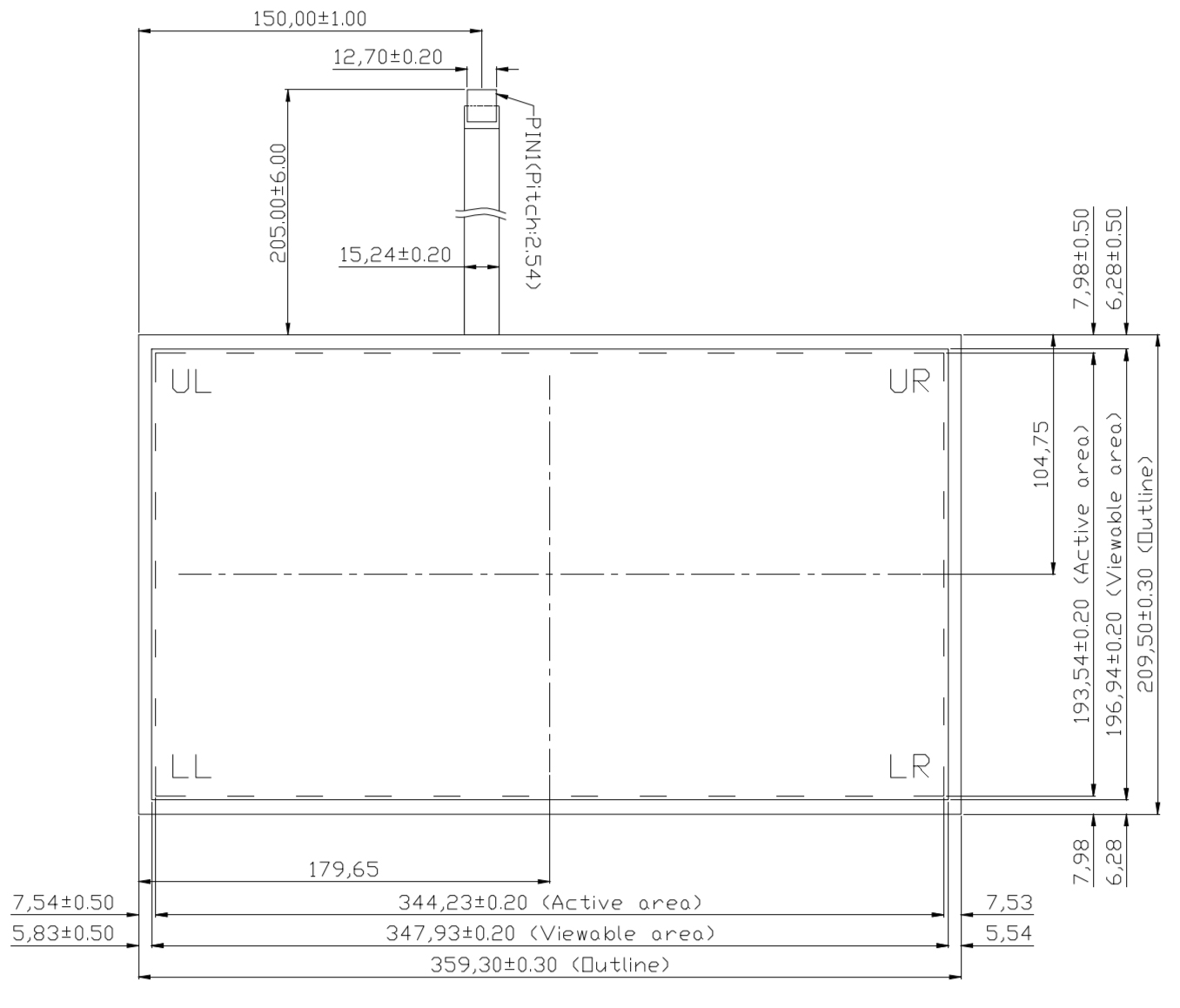

	Active Area (mm)	344.23 x 193.54	344.23 x 193.54	344.23 x 193.54	344.23 x 193.54
	Outline Dimension (W x H x D) (mm)	363.8 x 215.9 x 12.14	363.8 x 215.9 x 9.34	363.8 x 215.9 x 11.64	363.8 x 215.9 x 13.36
	Weight	1.23 kg	0.92 kg	0.97 kg	1.22 kg
	Inquiry	Inquiry F156RET-T51	Inquiry F156RET-T41	Inquiry F156RET-T52	Inquiry F156RET-TA1

最佳选配 - AD Board with Cable

For LVDS AD Board : AD-17RPE (VGA / DVI)

1.	DVI input
2.	VGA input
3.	Audio Phone Jack
4.	DC Jack
5.	LVDS Connector
6.	OSD Key Connector
Operating Temp. : -20 ~ 70℃
Outline : 110mm x 56mm

For LVDS AD Board : AD-0037D (HDMI / VGA / DP)

1.	HDMI input
2.	Display Port input
3.	VGA input
4.	Audio Phone Jack
5.	DC Jack
6.	LVDS Connector
7.	OSD Key Connector
Operating Temp. : -20 ~ 70℃
Outline : 120mm x 74mm

For eDP AD Board : AD-0112 (HDMI x 2 / DP)

1.	USB output
2.	HDMI input x 2
3.	Display Port input
4.	DC Jack
5.	Built-in OSD Key
6.	OSD Key Connector
7.	eDP Connector
Operating Temp. : -20 ~ 70℃
Outline : 100mm x 85mm

All Connector

RTP Touch Display List

Inch	Item	Resolution	Brightness (cd/㎡)	Viewing Angle	B/L Life Time (Hr)	Panel Interface	Panel Operating Temp. (℃)	Touch FPC Type	Touch Interface
5.7"	F057RET-T71	640 x 480	700	80/80/70/70	50K	CMOS	-30 ~ 85	COB	USB / RS232
6.5"	F065RET-T82	640 x 480	800	89/89/89/89	70K	LVDS	-30 ~ 80	COB	USB / RS232
7"	F070RET-Z04 C	800 x 480	400	89/89/89/89	50K	LVDS	-30 ~ 85	COB	USB / RS232
7"	F070RET-TA1	800 x 800	1,000	89/89/89/89	50K	LVDS	-30 ~ 80	COB	USB / RS232
8.4"	F084RET-T41	800 x 600	450	80/80/80/60	50K	LVDS	-30 ~ 80	COB	USB / RS232
8.4"	F084RET-TA1	1024 x 768	1,000	88/88/88/88	100K	LVDS	-30 ~ 80	COB	USB / RS232
10.1"	F101RET-T21	1024 x 600	250	70/70/60/60	15K	LVDS	-10 ~ 60	COB	USB / RS232
	F101RET-Z05	1280 x 800	400	89/89/89/89	20K	LVDS	-20 ~ 60	COB	USB / RS232
	F101RET-TA1	1280 x 800	1,000	85/85/85/85	50K	LVDS	-20 ~ 60	COB	USB / RS232
	F101RET-T31	1920 x 1200	380	89/89/89/89	20K	eDP	-10 ~ 60	COB	USB / RS232
10.4"	F104RET-T41	800 x 600	450	80/80/60/70	50K	LVDS	-30 ~ 80	COB	USB / RS232
	F104RET-T52	1024 x 768	500	88/88/88/88	50K	LVDS	-30 ~ 85	COB	USB / RS232
	F104RET-TA1	1024 x 768	1,000	88/88/88/88	50K	LVDS	-30 ~ 85	COB	USB / RS232
12.1"	F121RET-Z07	800 x 600	500	80/80/65/75	50K	LVDS	-30 ~ 85	COB	USB / RS232
	F121RET-Z05	1024 x 768	600	89/89/89/89	50K	LVDS	-30 ~ 85	COB	USB / RS232
	F121RET-TA1	1024 x 768	1,000	89/89/89/89	50K	LVDS	-30 ~ 75	COB	USB / RS232
15"	F150RET-Z03	1024 x 768	350	80/80/70/80	50K	LVDS	0 ~ 65	COB	USB / RS232
	F150RET-Z05	1024 x 768	500	88/88/88/88	50K	LVDS	-30 ~ 80	COB	USB / RS232
	F150RET-T81	1024 x 768	800	89/89/89/89	50K	LVDS	-20 ~ 75	COB	USB / RS232
	F150RET-TJ1	1024 x 768	1,800	80/80/70/80	50K	LVDS	-30 ~ 70	COB	USB / RS232
15.6"	F156RET-T51	1366 x 768	500	85/85/80/80	50K	LVDS	0 ~ 60	COB	USB / RS232
	F156RET-T41	1920 x 1080	450	89/89/89/89	50K	eDP	0 ~ 60	COB	USB / RS232
	F156RET-T52	1920 x 1080	500	89/89/89/89	50K	LVDS	-20 ~ 70	COB	USB / RS232
	F156RET-TA1	1920 x 1080	1,000	89/89/89/89	50K	LVDS	-30 ~ 85	COB	USB / RS232
17"	F170RET-T22	1280 x 1024	250	85/85/80/80	30K	LVDS	0 ~ 50	COB	USB / RS232
	F170RET-T31	1280 x 1024	350	85/85/80/80	50K	LVDS	0 ~ 50	COB	USB / RS232
	F170RET-T81	1280 x 1024	800	80/80/70/70	50K	LVDS	-30 ~ 85	COB	USB / RS232
18.5"	F185RET-T31	1920 x 1080	350	89/89/89/89	50K	LVDS	-20 ~ 70	COB	USB / RS232
19"	F190RET-T21	1280 x 1024	250	85/85/80/80	30K	LVDS	0 ~ 50	COB	USB / RS232
	F190RET-T31	1280 x 1024	350	89/89/89/89	50K	LVDS	-15 ~ 70	COB	USB / RS232
	F190RET-TG1	1280 x 1024	1,600	85/85/80/80	50K	LVDS	-30 ~ 70	COB	USB / RS232
21.5"	F215RET-T21	1920 x 1080	250	89/89/89/89	50K	LVDS	0 ~ 60	COB	USB / RS232
	F215RET-T51	1920 x 1080	500	89/89/89/89	50K	LVDS	-10 ~ 60	COB	USB / RS232
	F215RET-TA1	1920 x 1080	1,000	89/89/89/89	50K	LVDS	-10 ~ 80	COB	USB / RS232
23.8"	F238RET-T21	1920 x 1080	250	89/89/89/89	30K	LVDS	0 ~ 50	COB	USB / RS232
	F238RET-T41	1920 x 1080	400	89/89/89/89	50K	LVDS	0 ~ 50	COB	USB / RS232
	F238RET-TA1	1920 x 1080	1,000	88/88/88/88	50K	LVDS	-30 ~ 80	COB	USB / RS232

Touch Display Feature

Touch Display Feature

5 wire Resistive (RTP) Touch Display 触摸液晶屏

我们的触控液晶屏有5.7" ~ 32"可选, 同时可搭配AD Board与线材等完整套件,
若搭配高亮屏时, 亦可选择具有光感应功能的套件组, 以达自动调整背光亮度以及节能省电的效用.

RTP触摸支援手套触摸以及触控笔触摸 (需要针对使用设备进行分位较调),
我们拥有专业的工程团队提供协助, 可依照您的产品需求, 提供最适合的产品!

触控屏兼容多种主流OS系统, 适合多种类型终端产品使用,
如 : 充电桩, POS机, IPC, HMI, KIOSK, KVM, 强固型设备, 自动化设备, 运输设备与工业设备等.

依据使用环境, 支援多种触摸方式

Touch Display在特殊环境中可使用手套触摸以及触控笔触摸

可一并提供驱动板, 线材以及自动调光板

我们可提供匹配Touch Display的AD Board以及搭配的完整套件组, 另有Auto Dimming可根据环境光源自动调整背光亮暗的板卡可供选择.

Touch Display Kits

兼容Windows, MacOS, Linux与Android系统

我们的Touch Display适用Windows, MacOS, Linux与Android作业系统

Touch Display Application

Touch Display Application

Touch Customized Service

PCAP / RTP Touch Customized Service
Step	Customers	TWScreen
NEW Project : 1 Week	Product Requirments 1. Product Specifications (Size, Resolution, Interface, PCAP/RTP, AR/AG) 2. Application / Environment 3. Schedule 4. Forecast	Evaluation & Quotatoion 1. Depending on the application, Environment and schedule provide suitable solutions 2. 2D Drawing 3. Offer project quotation (NRE, Price)
Kick Off : 1 Week	Drawing Check & Purchase Order 1. Drawing & Touch specifications check 2. Reply EETI IC kick off form 3. Purchase Order (NRE)	Kick Off 1. Specification / drawing discussion and modification 2. Communication project needed with EETI 3. Proforma Invoice 4. Start production
EVT : 4 ~ 8 Week	EVT Sample Test 1. Feedback EVT sample test results a. Function test b. Appearance & layout check	Produce EVT Samples & Specifications 1. Prototyping, Offer 2pcs free samples to customers 2. First edition touch function test 3. Preliminary Specification 4. Optional : TP + LCM Bonding (Air / Optical)
Quickly get 2pcs Free Sample in 8 week!
Reliability verification and trial production according to customer needs
DVT : 6 ~ 8 Week	DVT Test & Laboratory Validations 1. Feedback DVT test results (Suggest test with final equipment) a. Safety certification (EMI & ESD...) b. Reliability test	Trial Production & assistance in certification testing (Final Tune) 1. DVT trial production is used for all laboratory validations (sugest 20pcs) 2. Assistance customer to do certification test (EMI & ESD...) 3. Check touch firmware 4. Offer Approval sheet
PVT : 6 ~ 10 Week	PVT Test 1. Feedback PVT test results	Verify Mass Production Yields 1. To verify mass production yields at mass production rates (suggest 100pcs) 2. Design shipping package
MP 300pcs (MOQ)

15.6 RTP TOUCH 15.6" 触摸液晶屏 (电阻式)

15.6" LCD Module with Touch (RTP)
