F084RET-T41 Spec. Download	F084RET-TA1 Spec. Download

8.4" Touch Display Specification

Part	Description	F084RET-T41	F084RET-TA1
LCD Display	Inch	8.4"	8.4"
	Resolution	800 x 600	1024 x 768
	Interface	LVDS	LVDS
	Brightness (cd/㎡)	450	1,000
	Viewing Angle	80/80/80/60	88/88/88/88
	B/L Life Time (Hr)	50K	100K
	Backlight Driver	Built-in	without
	Operating Temp. (℃)	-30 ~ 80	-30 ~ 80
Touch RTP	Structure (Glass Thickness)	F/G (2.048 mm)	F/G (2.048 mm)
	Touch IC	EETI EXC7700	EETI EXC7700
	FFC Type	COB	COB

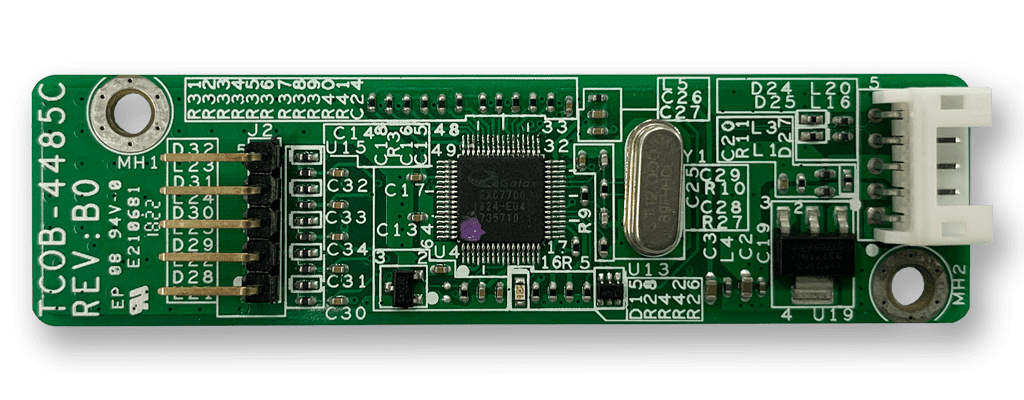

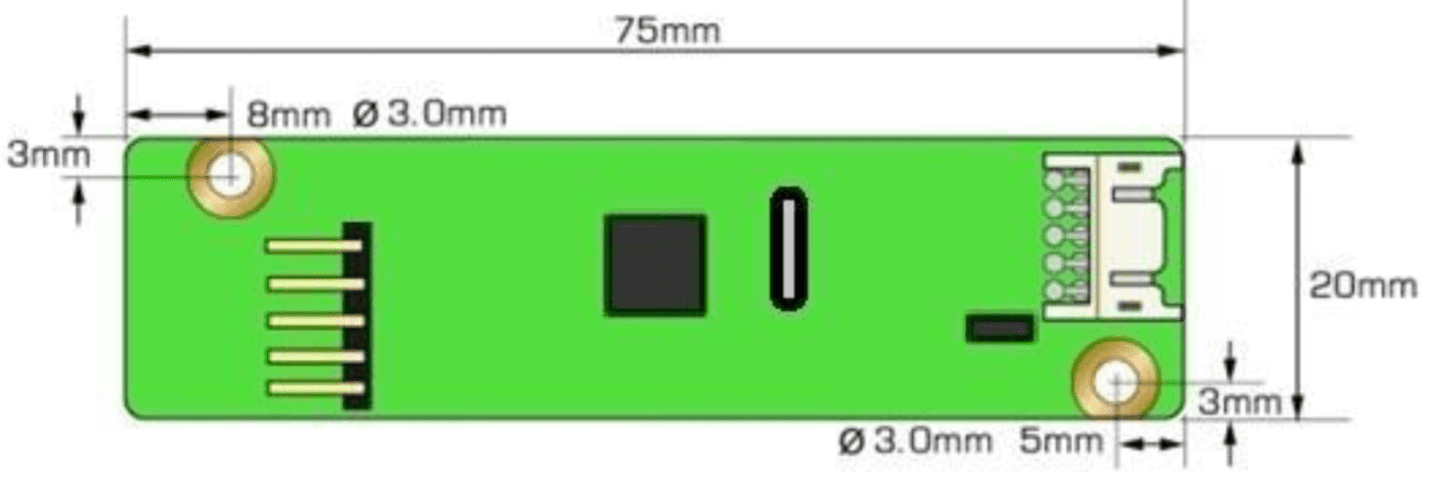

	Touch Controller	ETP-MB-MER4050	ETP-MB-MER4050
	Interface	USB / RS232	USB / RS232
	Surface Treatment	Clear	Clear
	Transparency	≧ 79%	≧ 79%
	Surface Hardness	≧ 3H	≧ 3H
	Operating Temp. (℃)	-20 ~ 70	-20 ~ 70
	Allow Touch Points	1 Point	1 Point
	Input Method	Finger, Gloved, Stylus	Finger, Gloved, Stylus
	OS	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11
Touch Display	Bonding Type	Air Bonding	Air Bonding

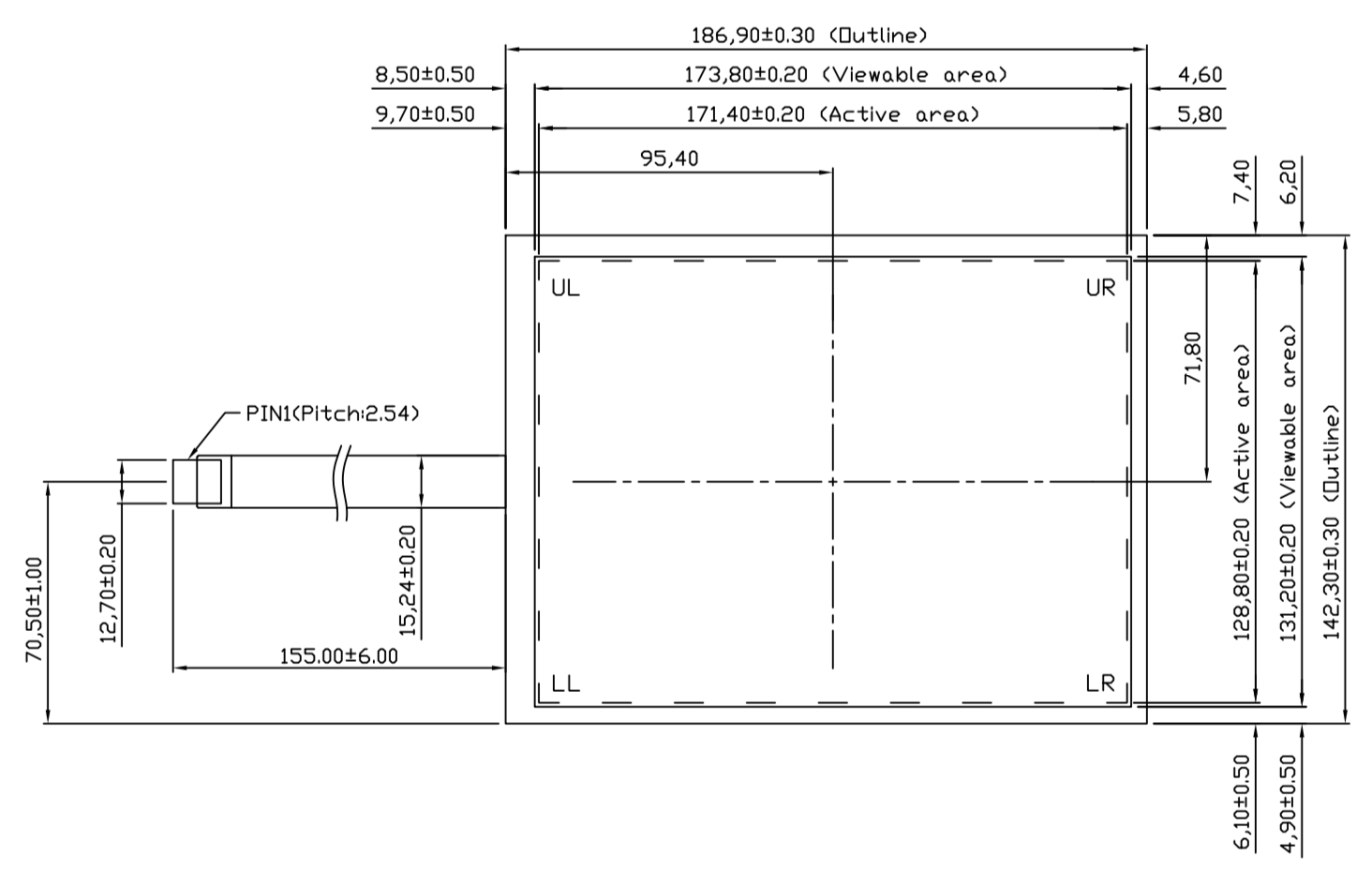

	Active Area (mm)	171.4 x 128.8	171.4 x 128.8
	Outline Dimension (W x H x D) (mm)	203 x 142.5 x 10.688	199.5 x 149 x 12.388
	Weight	0.38 kg	0.43 kg
	Inquiry	Inquiry F084RET-T41	Inquiry F084RET-TA1

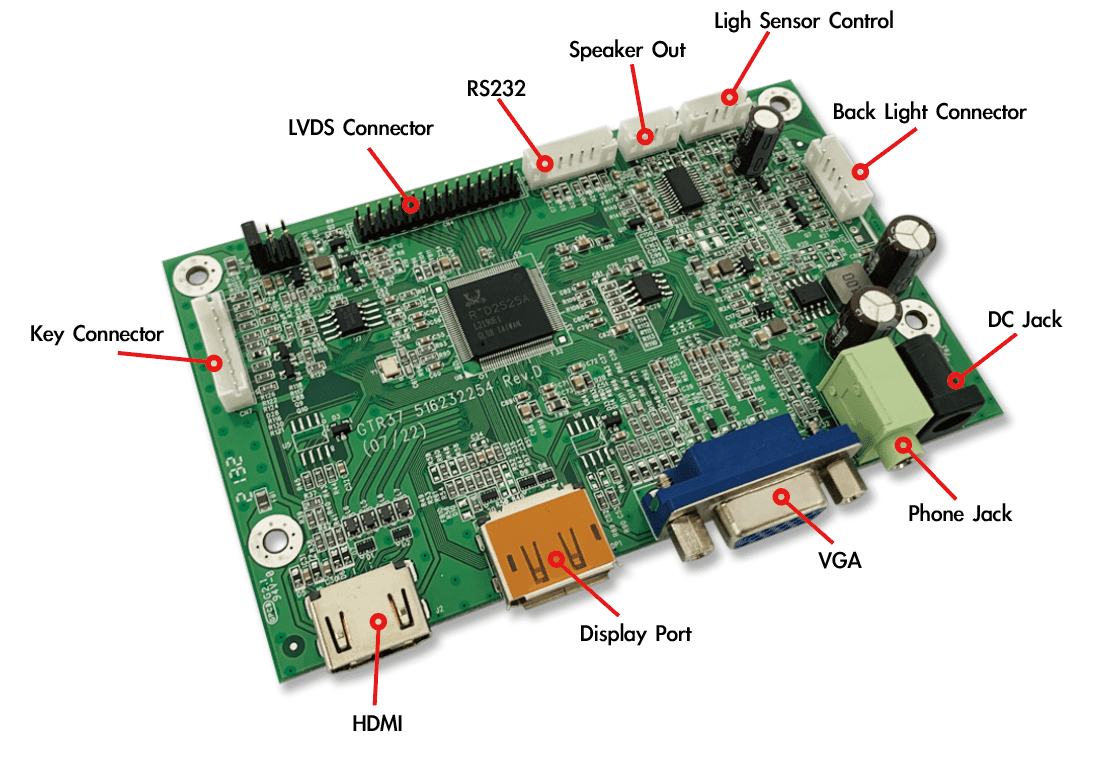

最佳選配 - AD Board with Cable

For LVDS AD Board : AD-17RPE (VGA / DVI)

1.	DVI input
2.	VGA input
3.	Audio Phone Jack
4.	DC Jack
5.	LVDS Connector
6.	OSD Key Connector
Operating Temp. : -20 ~ 70℃
Outline : 110mm x 56mm

For LVDS AD Board : AD-0037D (HDMI / VGA / DP)

1.	HDMI input
2.	Display Port input
3.	VGA input
4.	Audio Phone Jack
5.	DC Jack
6.	LVDS Connector
7.	OSD Key Connector
Operating Temp. : -20 ~ 70℃
Outline : 120mm x 74mm

For eDP AD Board : AD-0112 (HDMI x 2 / DP)

1.	USB output
2.	HDMI input x 2
3.	Display Port input
4.	DC Jack
5.	Built-in OSD Key
6.	OSD Key Connector
7.	eDP Connector
Operating Temp. : -20 ~ 70℃
Outline : 100mm x 85mm

All Connector

RTP Touch Display List

Inch	Item	Resolution	Brightness (cd/㎡)	Viewing Angle	B/L Life Time (Hr)	Panel Interface	Panel Operating Temp. (℃)	Touch FPC Type	Touch Interface
5.7"	F057RET-T71	640 x 480	700	80/80/70/70	50K	CMOS	-30 ~ 85	COB	USB / RS232
6.5"	F065RET-T82	640 x 480	800	89/89/89/89	70K	LVDS	-30 ~ 80	COB	USB / RS232
7"	F070RET-Z04	800 x 480	400	80/80/80/80	50K	LVDS	-30 ~ 85	COB	USB / RS232
7"	F070RET-TA1	800 x 800	1,000	89/89/89/89	50K	LVDS	-30 ~ 80	COB	USB / RS232
8.4"	F084RET-T41	800 x 600	450	80/80/80/60	50K	LVDS	-30 ~ 80	COB	USB / RS232
8.4"	F084RET-TA1	1024 x 768	1,000	88/88/88/88	100K	LVDS	-30 ~ 80	COB	USB / RS232
10.1"	F101RET-T21	1024 x 600	250	70/70/60/60	15K	LVDS	-10 ~ 60	COB	USB / RS232
	F101RET-Z05	1280 x 800	400	89/89/89/89	20K	LVDS	-20 ~ 60	COB	USB / RS232
	F101RET-TA1	1280 x 800	1,000	85/85/85/85	50K	LVDS	-20 ~ 60	COB	USB / RS232
	F101RET-T31	1920 x 1200	380	89/89/89/89	20K	eDP	-10 ~ 60	COB	USB / RS232
10.4"	F104RET-T41	800 x 600	450	80/80/60/70	50K	LVDS	-30 ~ 80	COB	USB / RS232
	F104RET-T52	1024 x 768	500	88/88/88/88	50K	LVDS	-30 ~ 85	COB	USB / RS232
	F104RET-TA1	1024 x 768	1,000	88/88/88/88	50K	LVDS	-30 ~ 85	COB	USB / RS232
12.1"	F121RET-Z07	800 x 600	500	80/80/65/75	50K	LVDS	-30 ~ 85	COB	USB / RS232
	F121RET-Z05	1024 x 768	600	89/89/89/89	50K	LVDS	-30 ~ 85	COB	USB / RS232
	F121RET-TA1	1024 x 768	1,000	89/89/89/89	50K	LVDS	-30 ~ 75	COB	USB / RS232
15"	F150RET-Z03	1024 x 768	350	80/80/70/80	50K	LVDS	0 ~ 65	COB	USB / RS232
	F150RET-Z05	1024 x 768	500	88/88/88/88	50K	LVDS	-30 ~ 80	COB	USB / RS232
	F150RET-T81	1024 x 768	800	89/89/89/89	50K	LVDS	-20 ~ 75	COB	USB / RS232
	F150RET-TJ1	1024 x 768	1,800	80/80/70/80	50K	LVDS	-30 ~ 70	COB	USB / RS232
15.6"	F156RET-T51	1366 x 768	500	85/85/80/80	50K	LVDS	0 ~ 60	COB	USB / RS232
	F156RET-T41	1920 x 1080	450	89/89/89/89	50K	eDP	0 ~ 60	COB	USB / RS232
	F156RET-T52	1920 x 1080	500	89/89/89/89	50K	LVDS	-20 ~ 70	COB	USB / RS232
	F156RET-TA1	1920 x 1080	1,000	89/89/89/89	50K	LVDS	-30 ~ 85	COB	USB / RS232
17"	F170RET-T22	1280 x 1024	250	85/85/80/80	30K	LVDS	0 ~ 50	COB	USB / RS232
	F170RET-T31	1280 x 1024	350	85/85/80/80	50K	LVDS	0 ~ 50	COB	USB / RS232
	F170RET-T81	1280 x 1024	800	80/80/70/70	50K	LVDS	-30 ~ 85	COB	USB / RS232
18.5"	F185RET-T31	1920 x 1080	350	89/89/89/89	50K	LVDS	-20 ~ 70	COB	USB / RS232
19"	F190RET-T21	1280 x 1024	250	85/85/80/80	30K	LVDS	0 ~ 50	COB	USB / RS232
	F190RET-T31	1280 x 1024	350	89/89/89/89	50K	LVDS	-15 ~ 70	COB	USB / RS232
	F190RET-TG1	1280 x 1024	1,600	85/85/80/80	50K	LVDS	-30 ~ 70	COB	USB / RS232
21.5"	F215RET-T21	1920 x 1080	250	89/89/89/89	50K	LVDS	0 ~ 60	COB	USB / RS232
	F215RET-T51	1920 x 1080	500	89/89/89/89	50K	LVDS	-10 ~ 60	COB	USB / RS232
	F215RET-TA1	1920 x 1080	1,000	89/89/89/89	50K	LVDS	-10 ~ 80	COB	USB / RS232
23.8"	F238RET-T21	1920 x 1080	250	89/89/89/89	30K	LVDS	0 ~ 50	COB	USB / RS232
	F238RET-T41	1920 x 1080	400	89/89/89/89	50K	LVDS	0 ~ 50	COB	USB / RS232
	F238RET-TA1	1920 x 1080	1,000	88/88/88/88	50K	LVDS	-30 ~ 80	COB	USB / RS232

Touch Display Feature

Touch Display Feature

5 wire Resistive (RTP) Touch Display 觸控液晶面板

我們的觸控液晶面板有5.7" ~ 32"可選, 同時可搭配AD Board與線材等完整套件,
若搭配高亮度面板時, 亦可選擇具有光感應功能的套件組, 以達自動調整面板亮度以及節能省電的效用.

RTP觸控支援手套觸控以及觸控筆觸控 (需要針對使用設備進行分位較調),
我們擁有專業的工程團隊提供協助, 可依照您的產品需求, 提供最適合的產品!

觸控面板兼容多種主流OS系統, 適合多種類型終端產品使用,
如 : 充電樁, POS機, IPC, HMI, KIOSK, KVM, 強固型設備, 自動化設備, 運輸設備與工業設備等.

依據使用環境, 支援多種觸控方式

Touch Display在特殊環境中可使用手套觸控以及觸控筆觸控

可一併提供驅動板, 線材以及自動調光板

我們可提供匹配Touch Display的AD Board以及搭配的完整套件組, 另有Auto Dimming可根據環境光源自動調整背光亮暗的板卡可供選擇.

Touch Display Kits

兼容Windows, MacOS, Linux與Android系統

我們的Touch Display適用Windows, MacOS, Linux與Android作業系統

Touch Display Application

Touch Display Application

Touch Customized Service

PCAP / RTP Touch Customized Service

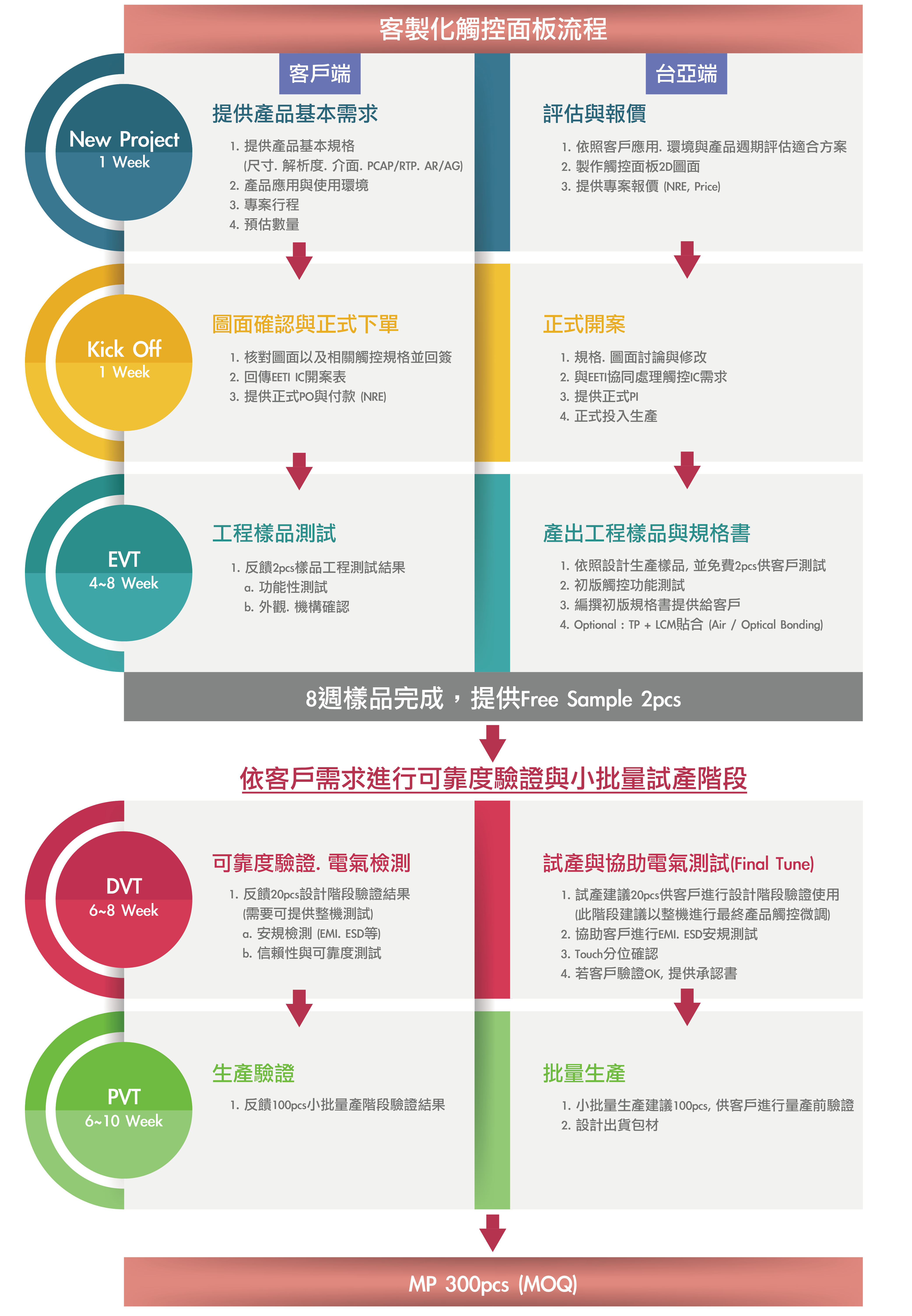

Step	Customers	TWScreen
NEW Project : 1 Week	Product Requirments 1. Product Specifications (Size, Resolution, Interface, PCAP/RTP, AR/AG) 2. Application / Environment 3. Schedule 4. Forecast	Evaluation & Quotatoion 1. Depending on the application, Environment and schedule provide suitable solutions 2. 2D Drawing 3. Offer project quotation (NRE, Price)
Kick Off : 1 Week	Drawing Check & Purchase Order 1. Drawing & Touch specifications check 2. Reply EETI IC kick off form 3. Purchase Order (NRE)	Kick Off 1. Specification / drawing discussion and modification 2. Communication project needed with EETI 3. Proforma Invoice 4. Start production
EVT : 4 ~ 8 Week	EVT Sample Test 1. Feedback EVT sample test results a. Function test b. Appearance & layout check	Produce EVT Samples & Specifications 1. Prototyping, Offer 2pcs free samples to customers 2. First edition touch function test 3. Preliminary Specification 4. Optional : TP + LCM Bonding (Air / Optical)
Quickly get 2pcs Free Sample in 8 week!
Reliability verification and trial production according to customer needs
DVT : 6 ~ 8 Week	DVT Test & Laboratory Validations 1. Feedback DVT test results (Suggest test with final equipment) a. Safety certification (EMI & ESD...) b. Reliability test	Trial Production & assistance in certification testing (Final Tune) 1. DVT trial production is used for all laboratory validations (sugest 20pcs) 2. Assistance customer to do certification test (EMI & ESD...) 3. Check touch firmware 4. Offer Approval sheet
PVT : 6 ~ 10 Week	PVT Test 1. Feedback PVT test results	Verify Mass Production Yields 1. To verify mass production yields at mass production rates (suggest 100pcs) 2. Design shipping package
MP 300pcs (MOQ)

8.4 RTP TOUCH 8.4" 觸控液晶面板 (電阻式)

8.4" LCD Module with Touch (RTP)
